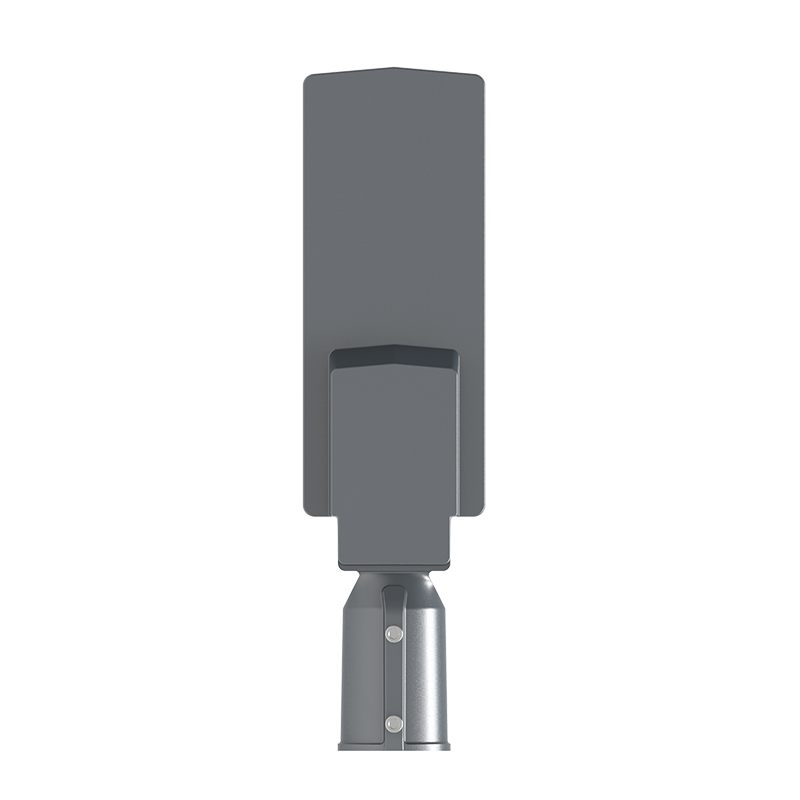

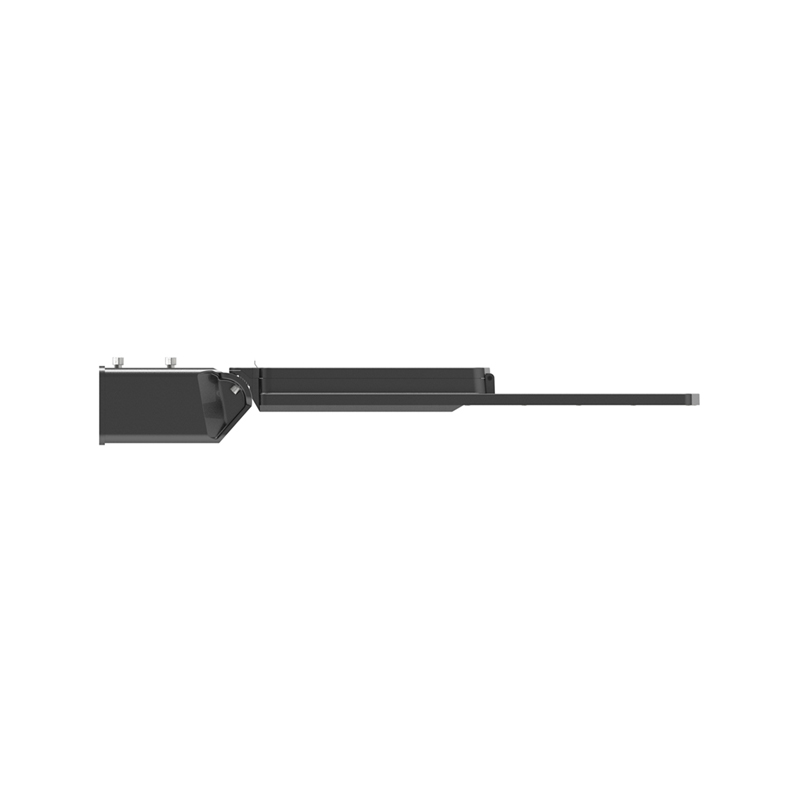

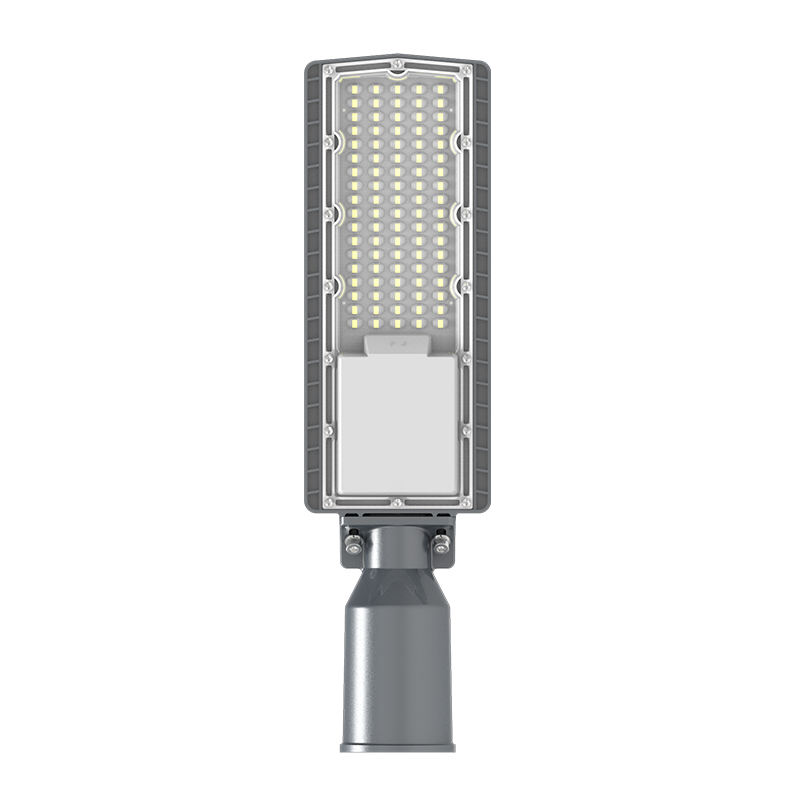

Home / Products / Led Street Light / IP66 IK09 0-10V TIMER DIMMING FJ-Sino Series LED STREET LIGHT
FJ-Sino Series combines the duo of architectural form and versatility to make it an excellent choice for new construction or for retrofit applications. It is offered in a variety of wattage allowing for maximum flexibility in all types of applications. The high output LED and custom engineered optics provide excellent uniformity and efficiency. It is designed to replace the existing HID fixtures up to 1000 W.

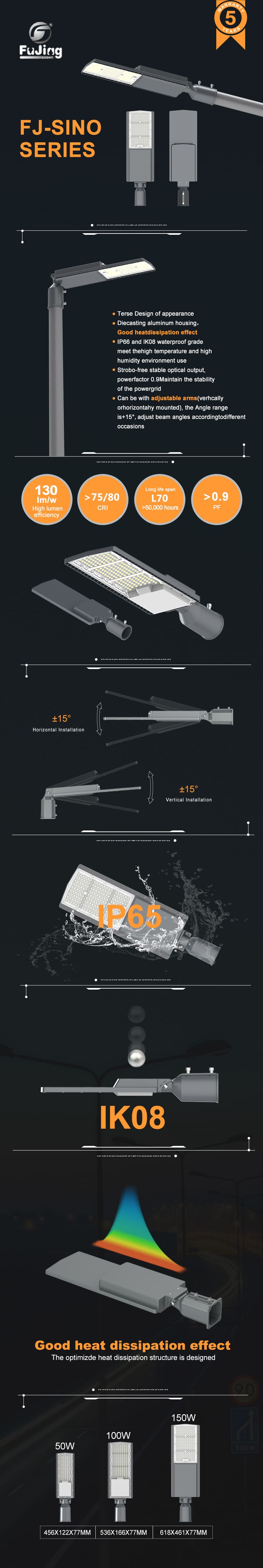

PRODUCT FEATURES
-Terse Design of appearance.
-Die-casting aluminum housing.Good heat dissipation effect.
-IP66 and IK09 waterproof grade meet the high temperature and high humidity environment use .
-Strobo-free stable optical output, power factor 0.9Maintain the stability of the power grid.
-Can be with adjustable arms(vertically or horizontally mounted), the Angle range is ±15°,adjust beam angles according to different occasions.
Efficacy (lm/W) | 130lm/w |
Power (W) | 30W,50W,60W,80W,100W,120W,150W |
CCT (K) | 3000K, 4000K, 5000K, 6000K |
Voltage | AC 100-240 V 50/60 Hz |
Beam Angle | 140*70° |
CRI | Ra>70 (Default) / Ra>80 |
Power Factor(PF) | PF>0.9 |
IP Rating | IP66 |
IK Rating | IK09 |
Working Environment | -20℃~+50℃,10%~90%RH |
Lifespan L70 at 25℃ | >50,000hrs |
Holder | 50mm/60mm(Default) |
Body Material | High pressure die-cast aluminum |
Housing Color | Dark Grey/Black/Light Grey (available on request) |
Cover Material | UV-resistant Polycarbonate |
Mounting Type | Side entry or Vertical pole mounted ±15° |
Dimmable | 1-10V Dimming /Timer Dimming |
Protection Class | Class Ⅰ(Defauit)/Class Ⅱ |
Standards | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK09 |
Available on request | Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming |
Reasonable tolerance | Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5% |
Shanghai FuJing Lighting Technology Co., Ltd. is China IP66 IK09 0-10V TIMER DIMMING FJ-Sino Series LED STREET LIGHT Suppliers, Factory.Which is engaged in the development of LED optical lighting products, production, sales and after-sales services, which is professional company. The company gathered a group of experienced professionals who has more than a decade experiences in LED lighting and electronic industries,and made a breakthrough in led lighting, lamps development and application.
In order to make up for all types of users whit the inconvenience of the LED applications, our company will provide technical support for LED applications by specialized technical without of the company. We will be the solid backing of customer and help clients to develop more market to make LED lighting in a wider area to be achieved. The main series of LED Light in our company are LED High Bay Light, LED Flood Light, LED Street Light, LED Down Light, LED Panel Light, LED Tube Light, and other products . Our products are widely used in factory, warehouse, park, plaza, shopping mall, counter, dance and home decoration.
